Turbo Turbine Shaft & Exhaust Wheel for Cummins 5.9L Holset HX40 HX40W 10 Blade

JDMprods

USD $139.95

NPBoosted Diesel Turbo Kits



Turbo Rebuild Repair Kit 10 Blade Turbine Wheel / Shaft Upgrade for Holset HX35 HX40 HE351 HE341 H1E H1C

10 Blade Upgraded Exhaust Wheel ~ 67mm x 76mm

Turbocharger OEM # Fitment Guide:
HY35
HX35
HE35
HX40
HE341
HE351

Fast & Free Shipping: USA & Canada
Worldwide Shipping: $49.95

Vehicle Fitment Guide:
1989-2007 Dodge Ram 2500 5.9L Diesel
1989-2007 Dodge Ram 3500 5.9L Diesel
(Check Turbocharger Tag for Part Number to Match our OEM #s Above)

  • Dodge Ram 5.9L Cummins Turbo Deisel
  • Heavy Duty Machinery
  • Excavators & Generators with Cummins Engines
  • Many More!
Shaft and Wheel Measurements:
Inducer: 76 mm
Exducer: 67 mm
Journal Diameter: 11.00mm
Tip Height: 12.2500mm
Shaft diameter: 7.00mm
Blades:10

OEM Turbine Specs In Comparison:
H1C / HX35 60mm x 70mm
H1E / HX40 64mm x 76mm
H1E Rare Turbine 67mm x 76mm (OUR TURBINE KIT)

Upgrade for HX35 HX40 HE351 HE341 H1E H1C (Not Upgrade for VGT Models, Must use 67 x 70mm)

    Included with Rebuild Kits

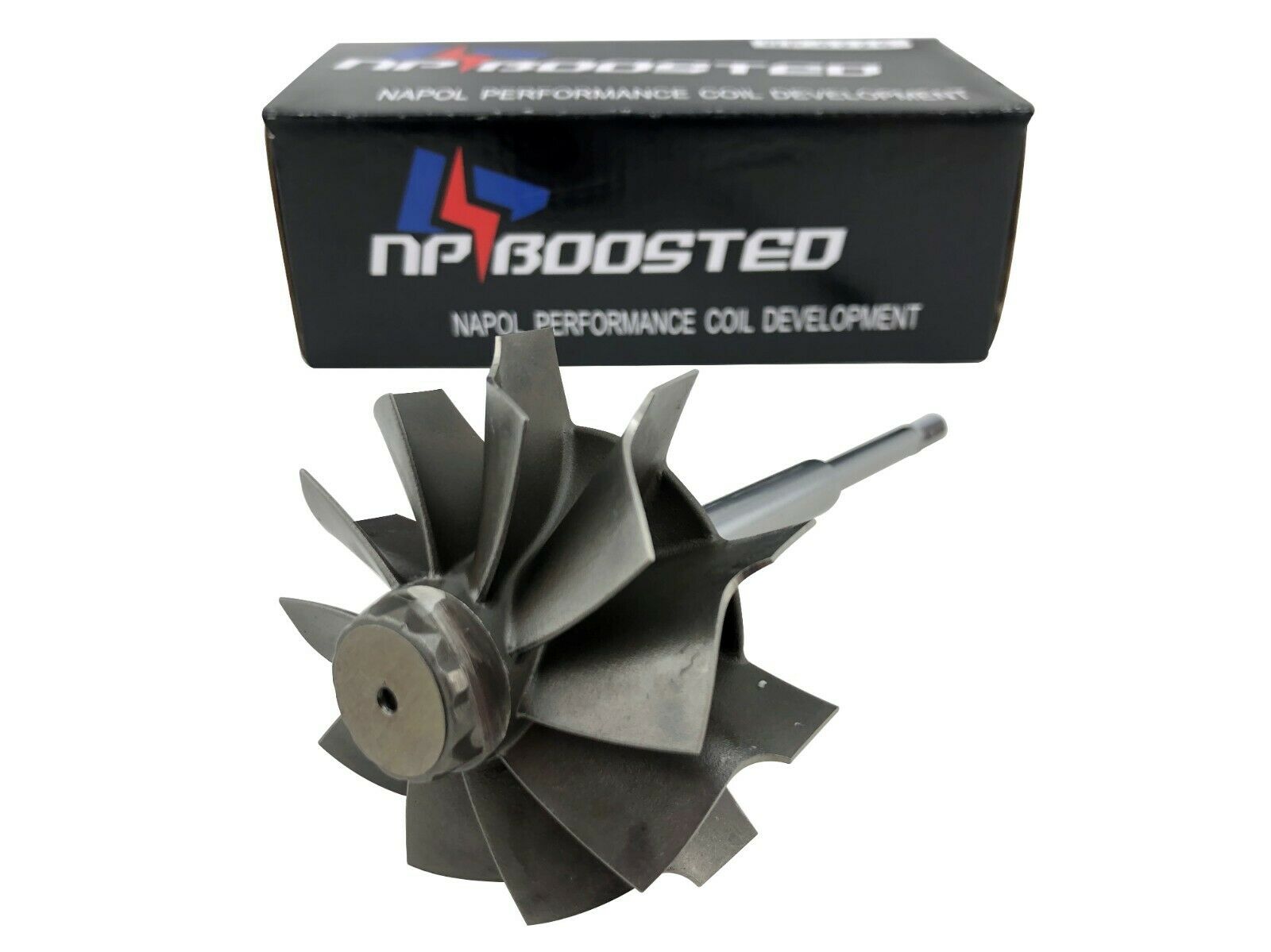

  • 10 Blade Turbine Wheel / Shaft Upgrade ~ 67mm x 76mm
This 10 Blade vs the 12 blade will help relieve back pressure and keep EGT's down. The shaft will be a little lighter than the 12 blade which will help with spool time. This Turbine is right for you If you are trying to Make More Horsepower over the factory 12 blade turbine and you want to keep your EGT's down.

Cross Reference Part Numbers:

HY35, HX35, HX40, HE341, HE351, 3575169

HX35G, HX40W, HE351CW, HX35W


Ship all products out the same day! All items sent Express Air Mail
