T25 T28 GT2871 6+6 Billet Compressor Wheel Turbo Turbocharger A/R 0.60 / 0.64
JDMprods
USD $299.95
NPBoosted
Upgraded 6+6 Billet Wheel Aftermarket Turbocharger GT28 GT2871 GTX2871 Turbo Compressor A/R .64 T25 Turbine Internal Wastegate 400HP
Fitment Guide:
Import / Domestic / European
4 Cylinder / 6 Cylinder
250HP to 400HP Output
( Fully Balanced & Tested )
Fast & Free Shipping: USA & Canada
Worldwide Shipping: $99.95
Package Contents:

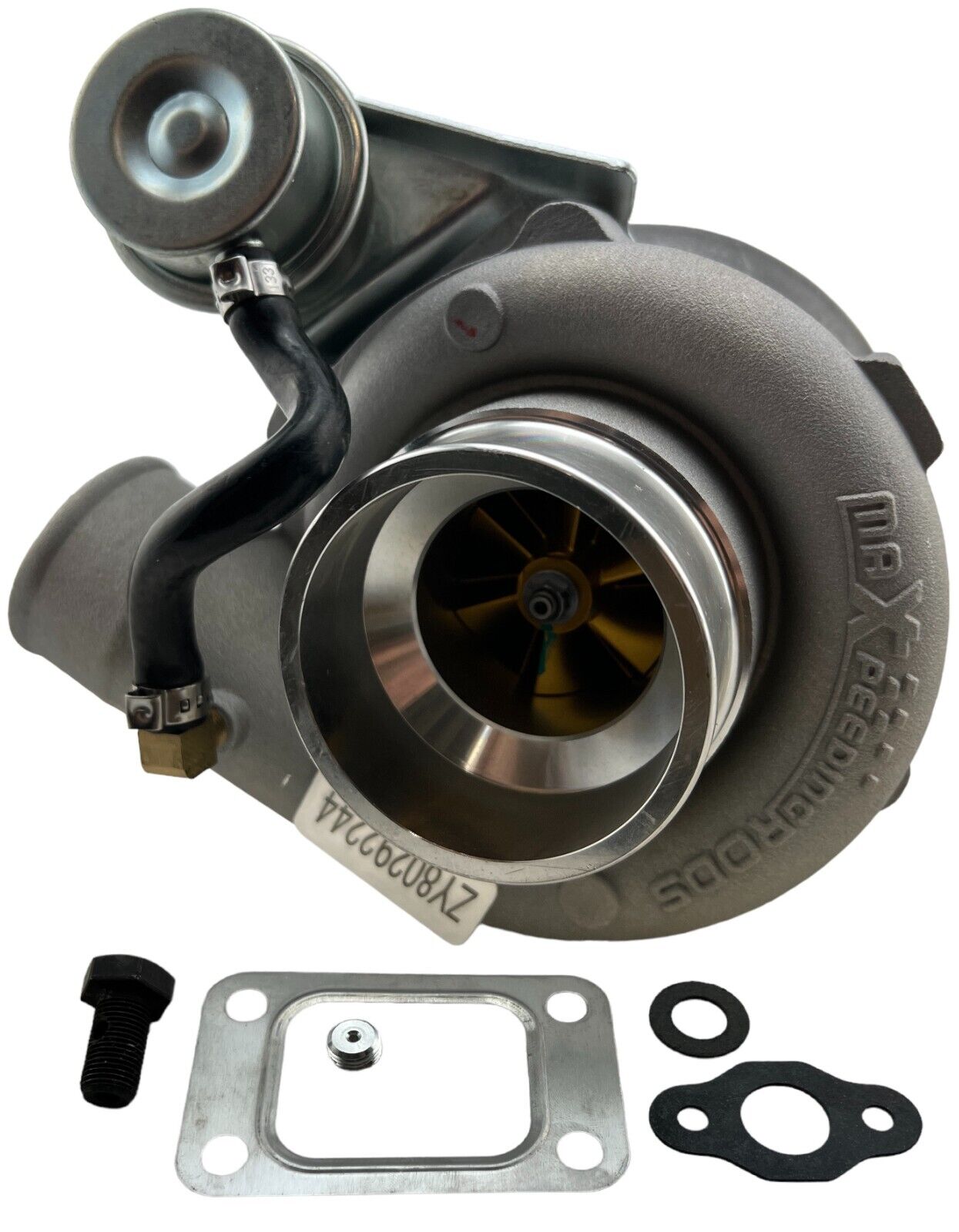

(1) Aftermarket GT2871 Turbocharger Assembly
w/ Internal Wastegate and Lines
Installation Hardware Bolt / Plug / Flanges & Gaskets
6+6 Billet Compressor wheel / 10 Blade Exhaust Wheel
Specs
Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Wastegate: Internal Wastegate
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M14*1.5
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Wastegate: Internal Wastegate
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M14*1.5
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Turbo Manifold has T25 Flange ( T28 Flange can be converted to T25 Flange, Adapter is needed )
Professional Installation is Highly Recommended (No Instructions Included)
Cross Reference Part Numbers:
NP-GT2871TRB-1
|
