Hybrid T3/T4 Turbo Charger .50 .63 A/R T3 T4 Internal Wastegate 8 PSI 2.5" Vband

JDMprods

USD $259.95


NPBoosted


27

Hybrid T04E T3/T4 .63 Turbo Turbocharger Compressor 350HP w/ Internal Wastegate 2.5" Exhaust VBand

Fitment Guide:
T3/T4 Hybrid Turbocharger is designed to be used on engines displacing 1.6L-2.5L and is typically good for around 400HP. They are also commonly used in twin turbo applications.
In this case those figures would be doubled 3.2L-5.0L engines up to 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability

T3/T4 Hybrid Turbochargers are created by installing a T4 compressor wheel and housing onto a T3 turbine housing, wheel & center section.

T3/T4 hybrid turbocharger assembly is designed for engines where a T3 turbocharger is too small to reach the desired maximum horsepower but using a T4 turbocharger would create too much turbo lag.

Fast & Free Shipping: USA & Canada
Worldwide Shipping: $99.95

Package Contents:

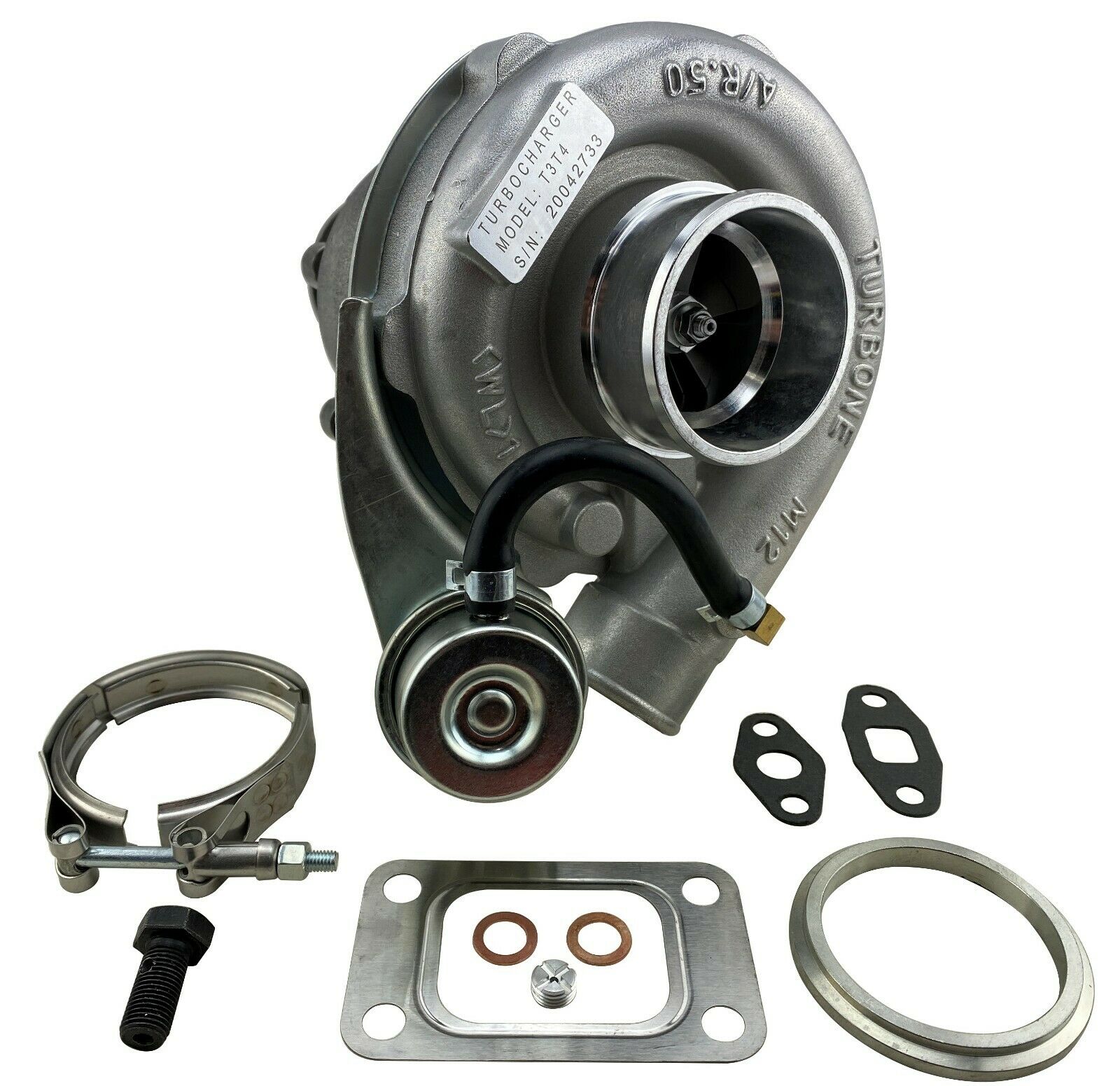

(1) Hybrid T3/T4 Hi FLow Turbocharger Kit
(1) Installation Kit: Gaskets / Bolts / Washers / 2.5" Vband + Ring

Specs:
4 Bolt Exhaust Flange
Capable of 8 PSI or 15-25 PSI output at peak power
Internal Wastegate setting: 8 PSI

Compressor:
3" Inlet
50.55 Inducer
57 Trim

Turbine:
T3 Type Turbine Flange
.63 A/R
65.2 Inducer
56.06 Exducer

Recommended boost pressures are 7psi (.5 Bar) to 21psi (1.5 Bar)
Boost pressures should not exceed 30psi (2 Bar)

Professional installation is highly recommended (No Instruction Included)
This is a universal application turbo, so modification would be required for some vehicles

Cross Reference Part Numbers:

NP-T3T4TC, T3/T4, T3 T4
