NEW FUEL INJECTOR FOR FIAT DUCATI HARLEY DAVIDSON MOTORCYCLES IWP069 490CC 46LB

JDMprods

USD $39.95

Next Product →

NPBoosted

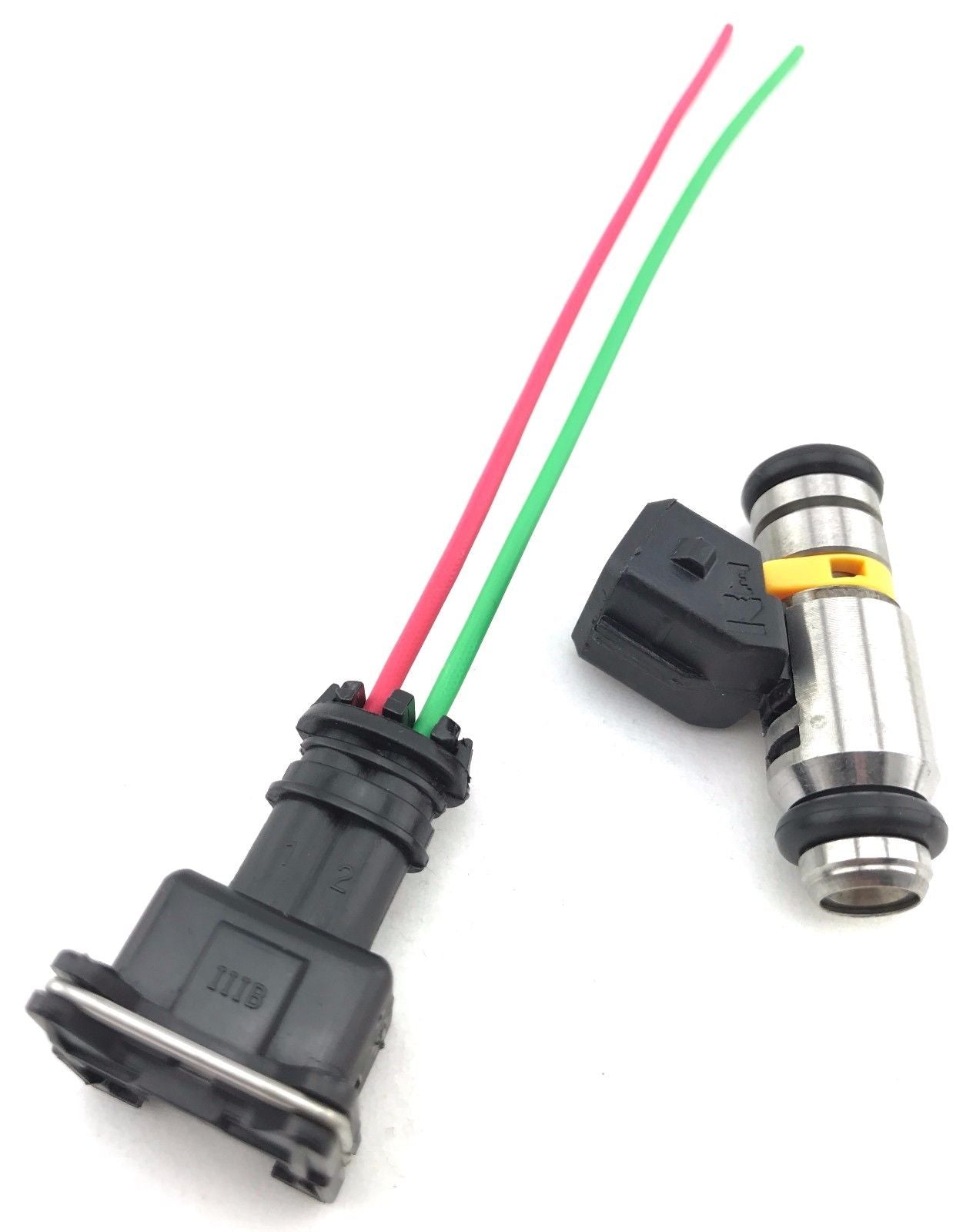

Single (1) One Aftermarket Replacement injector for 861260T / IWP069 Weber Magneti Marelli Yellow band Fuel Injector
PLUS++ Wire Harness Connector Clips and Wire Loom

480 CC PER MIN  46 LB PER HOUR

Single hole ‘cone’ spray pattern



46lbs/min @ 43.5 PSI or 3 BAR
Resistance: 13.7 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
2 O-rings Included: YES
FREE SHIPPING: USA & CANADA
Worldwide Shipping: $49.95

Ducati Applications:
DUCATI MOTORCYCLES MOT 749 749 (H 5) 748cc 76kw 2Cylinder Motorcycle 2002-2006
DUCATI MOTORCYCLES MOT 749 749 Dark 748cc 76kw 2Cylinder Motorcycle 2003-2006
DUCATI MOTORCYCLES MOT 749 749 R (H5) 749cc 85kw 2Cylinder Motorcycle 2003-2006
DUCATI MOTORCYCLES MOT 749 749 S 748 cc 81kw 2Cylinder Motorcycle 2003-2006
DUCATI MOTORCYCLES MOT 749 749 S (H 5) 748cc 76kw 2Cylinder Motorcycle 2003-2003
DUCATI MOTORCYCLES MOT 996 996 R 998cc 100kw 2Cylinder Motorcycle 2000-2001
DUCATI MOTORCYCLES MOT 998 998 998cc 91kw 2Cylinder Motorcycle 2001-2004
DUCATI MOTORCYCLES MOT 998 998 S 998cc 100kw 2Cylinder Motorcycle 2001-2002
DUCATI MOTORCYCLES MOT 999 999 998cc 91kw 2Cylinder Motorcycle 2002-2005
DUCATI MOTORCYCLES MOT 999 999 998 cc 100kw 2Cylinder Motorcycle 2005-2006




Model

 IWP069
Injector Body Design All steel with composite plastic connector, Yellow band
Electrical connector type Minitimer (EV1)
Spray Nozzle Single disc, wide spray pattern
Operating temperature range

-30-110°c
Resistance

14.5 Ohms
Weight 38g
Height 47.2mm
